Model Number : HG-003
Dimension (mm) : Ø180*80
Cooling Surface(mm²) : 10,000~14,000
Cooling Performance(lm) : 398,982
Thermal Resistance(°C/W) : 0.3~0.5 (Varies Upon COB Chips)
Dissipated Power (W) : 80-100
Weight (KG) : 1.1kgs/2.4lbs
Material : AL1070
Surface Treatment Options : Electrophoresis Black
Mechanical Drawing

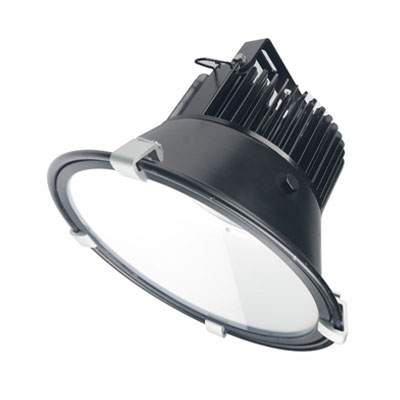

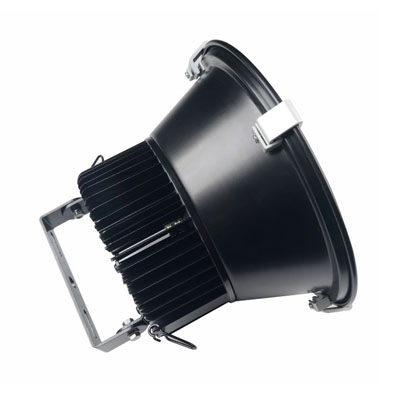

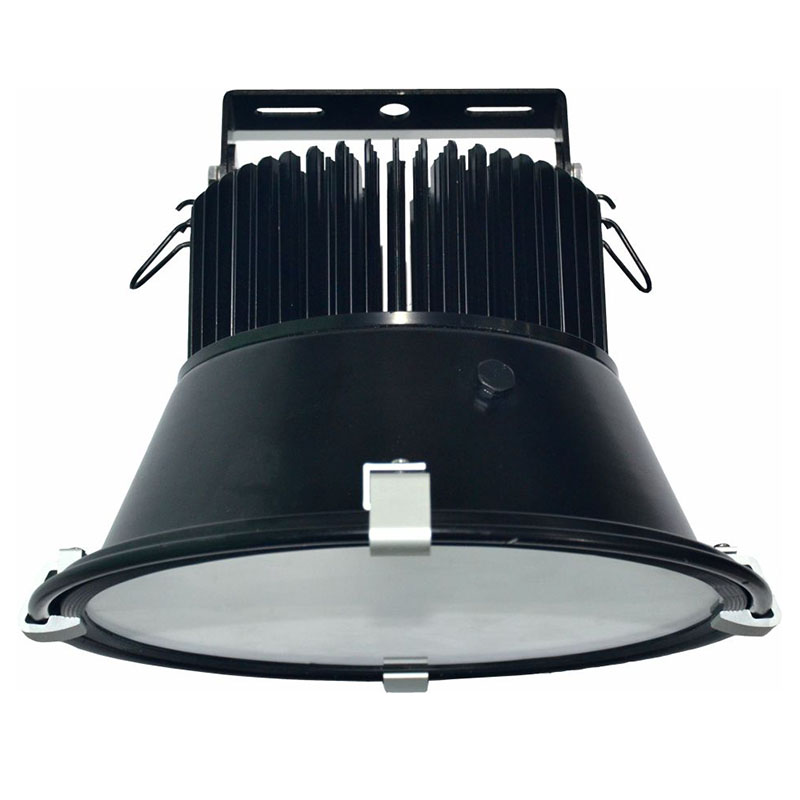

100W SMD LED Grow Light Heat Sink Assembly |
Features : |
● Industry Best 100W COB Thermal Solution ● Patented Heat Pipes Absolute Embedding Flatness Technology ● Much Faster Heat Dissipation Speed to Avoid Light Decay Risk ● Most Advanced Cold-Forging Heat Sink Production Techniques ● Much Better Thermal Conductive Aluminum Material (AL 1070) ● Most Advanced Eletrophoresis Coating Surface Treatment for Best Corrosion Resistance ● Flexible Mounting Systems Custom Design & Built ● Great Variety of COB LED Lighting Applications |
Product Dimensions: |
 |
Heat Dissipation Simulation: |
 |
| Heat Dissipation Simulation: |
Temperature Rise Curve: |
 |
Applications: |
| A great variety of applications in High Bay Light, Down Light, Flood Light, Street Light, Sports Light, and more. |
 |
