Model Number : DG130-050-001
Dimension (mm) : Ø130x68.5
Cooling Surface(mm²) : 105,857
Cooling Performance (lm) : 4,800~5,400
Thermal Resistance(°C/W) : 1.0~1.5
Dissipated Power (W) : 40W~50W
Weight (KG) : 1.01 kgs/2.23 lbs
Material : AL1070 Aluminum
Surface Treatment Options : Anodized Black or clear; Electrophoresis Black
Mechanical Drawing

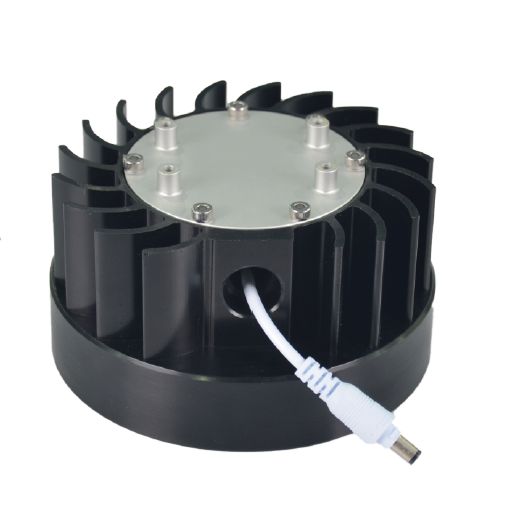

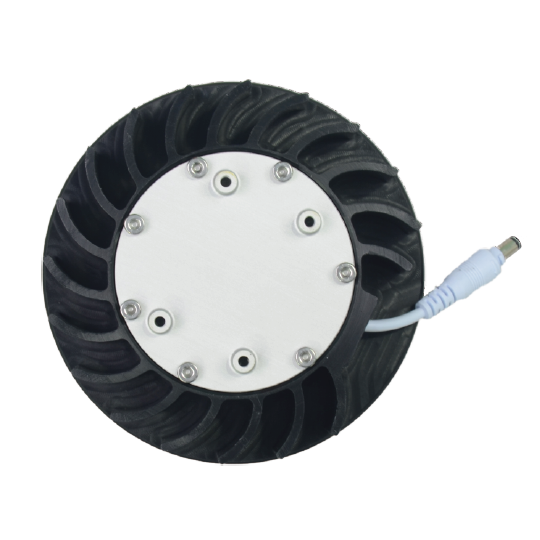

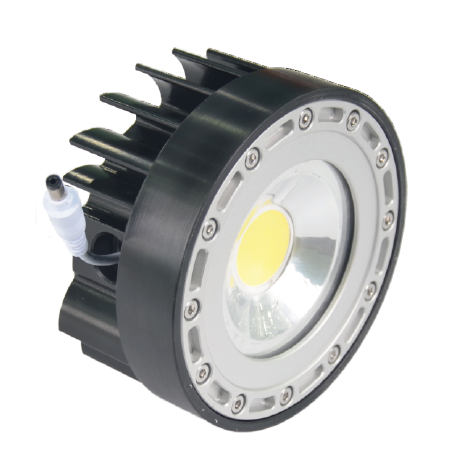

40～50W COB LED Explosion-Proof Industrial Light Heat Sink Module (6") DG130-050-001 |
Features : |
● Best Thermal Performance for 40~50W COB LED High Bay Light/Explosion-Proof Light Application ● Cold-Forging Benefits: Lower Fin Height, Lighter Weight, and Down Size ● Advanced Surface Treatment for Best Corrosion Protection for Hazardous Working Environment |
Product Dimensions: |
 |

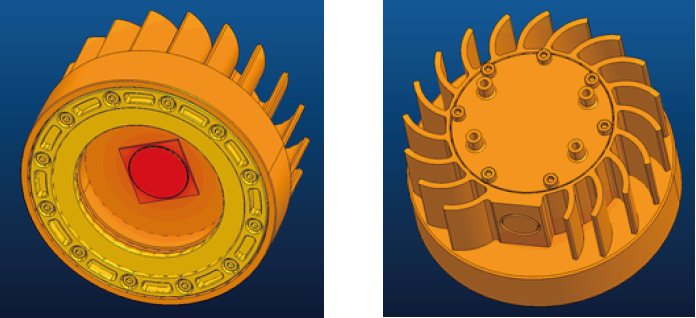

Heat Dissipation Simulation: |
 |
| Heat Dissipation Simulation: |
Temperature Rise Curve: |
  |

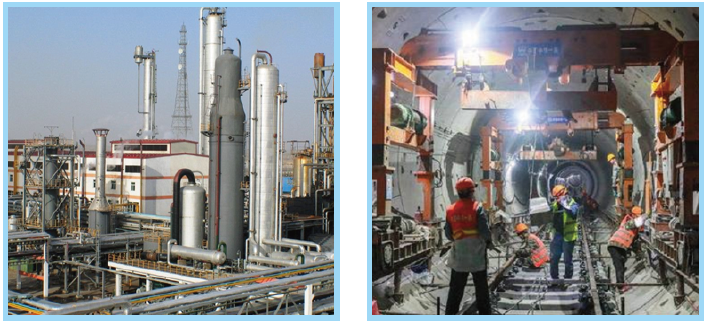

Applications: |
| A great variety of applications in High Bay Light, Down Light, Flood Light, Street Light, Sports Light, and more. |
 |
